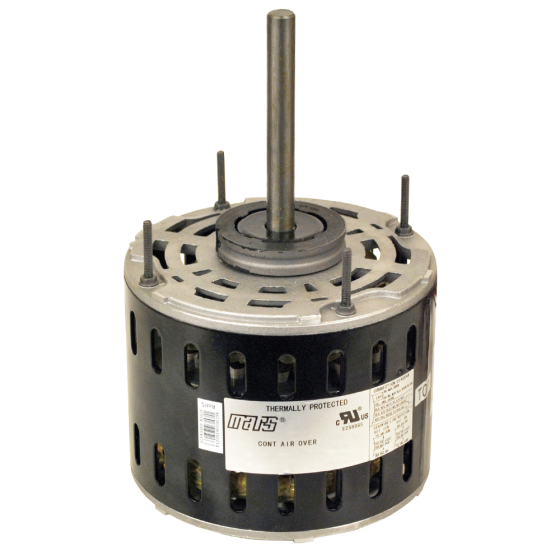

Mars® Direct Drive Blower Motor 1/2 HP, 1075 RPM, 208/230Vac, 3.2A, 7.5µF/370Vac, 3 Speed, 40°C (PSC)

Item

10588

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/2
• RPM: 1075
• Number of Speeds: 3
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 3.2
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 4.5

DIRECT REPLACEMENT FOR

• Century/A.O. Smith - D1056
• US Motors/Emerson - 1973
• Fasco - D703
• Genteq/Regal - 3588
• Marathon - X005
• Nordyne/ Partners Choice - 10175
• Packard - 43588
• Rheem/Ruud Protech - W5112BJA301
• Carrier/Totaline RCD - P2578588
• Diversitech/Wagner - WG840588
• York/Source 7 - S1FHM3588
• ROTOM - DD3588

Specifications

Specification
Ambient Temperature	40 °C
Bearing Type	Sleeve
Motor Frame	48
Motor HP	1/2
Motor Type	PSC
Mounting Type	Belly Band
Number of Speeds	3
RPM	1075
Shaft Diameter	0.50
Shaft Length	4.5

Electrical
Amps	3.2
FLA	3.2
Hertz	60
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	13.500000
Exterior Dimensions (W) (inches)	6.500000
Exterior Dimensions (H) (inches)	6.500000
Shipping Weight (lbs)	10.000000

Warranty
Parts Warranty	1 Year
