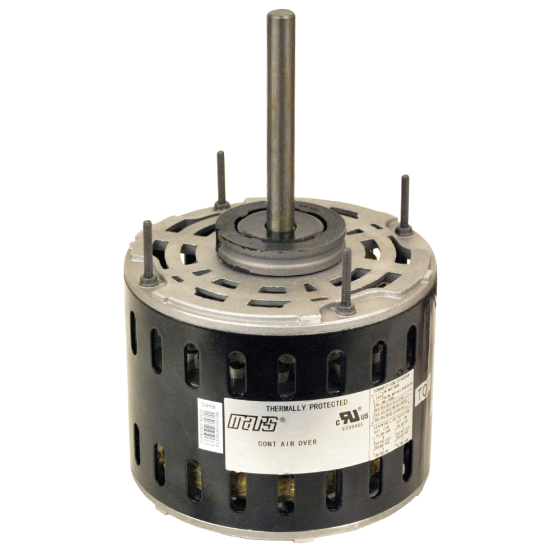

Mars® Direct Drive Blower Motor 1/3 HP, 1075 RPM, 115Vac, 6.1A, 5µF/370Vac, 3 Speed, 40°C (PSC)

Item

10585

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 1075
• Number of Speeds: 3
• Rotation: Reversible
• Voltage: 115Vac
• Amperage: 6.1
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 4.5

DIRECT REPLACEMENT FOR

• Century/A.O. Smith - DL1036
• US Motors/Emerson - 1864
• Fasco - D727
• Genteq/Regal - 3585
• Marathon - X002
• Nordyne/ Partners Choice - 10170
• Packard - 43585
• Rheem/Ruud Protech - W5113BAA301
• Carrier/Totaline RCD - P2578585
• Diversitech/Wagner - WG840585
• York/Source 4 - S1FHM3585
• ROTOM - DD3585

Specifications

Specification
Ambient Temperature	40 °C
Bearing Type	Sleeve
Motor Frame	48
Motor HP	1/3
Motor Type	PSC
Mounting Type	Belly Band
Number of Speeds	3
RPM	1075
Shaft Diameter	0.50
Shaft Length	4.5

Electrical
Amps	6.1
FLA	6.1
Hertz	60
Voltage	115

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	4
Exterior Dimensions (D) (inches)	13.500000
Exterior Dimensions (W) (inches)	6.500000
Exterior Dimensions (H) (inches)	6.500000
Shipping Weight (lbs)	8.000000

Warranty
Parts Warranty	1 Year
