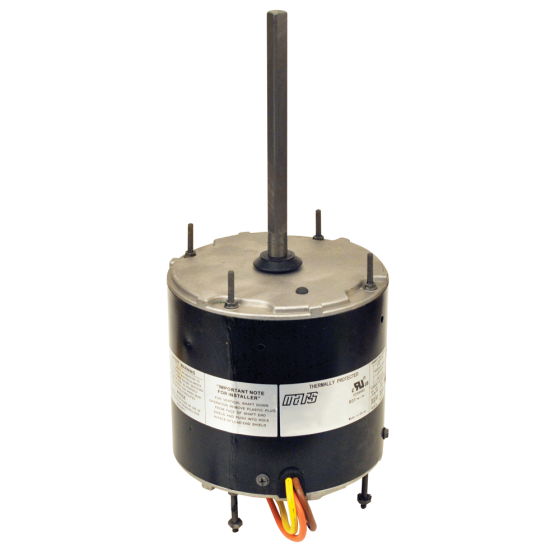

Mars® Condenser Fan Motor 1/6-1/3HP, 1075 RPM, 208/230Vac, 2.6A, 5/7.5µF/370Vac, 2 Speed

Item
10465
  • California Prop 65

APPLICATIONS

MARS multi-horsepower condenser fan motors are ideal for truck stock.

FEATURES & BENEFITS

• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/3
• Voltage: 208-230
• Multi-Rated H.P.: 1/6-1/3
• Speeds: 2
• Hz: 60
• Rotation: REV
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 2.6
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 60
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 5/7.5/370
• Rheem mounting holes w/screws installed
• Thru bolt or band mounting
• Water slinger on shaft
• Air conditioning or heat pump duty

DIRECT REPLACEMENTS

• Century/A.O. Smith - FE6000
• US Motors/Emerson - 5462
• Fasco - D2827
• Genteq/Regal - 3465
• Marathon - X072
• Nordyne/Partners Choice - 01-0695
• Rheem/Ruud Protech - 51-23053-21
• Carrier/Totaline RCD - P257-E5462
• Diversitech/Wagner - WG840465
• York/Source 2 - S1-FHM3465
• ROTOM - R22605

Specification
Ambient Temperature 60° C
Motor HP 1/6-1/3
Motor Type PSC
RPM 1075
Electrical
Amps 2.6
FLA 2.6
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 10
Exterior Dimensions (D) (inches) 5.630000
Exterior Dimensions (W) (inches) 5.630000
Exterior Dimensions (H) (inches) 13.440000
Shipping Weight (lbs) 10.000000
