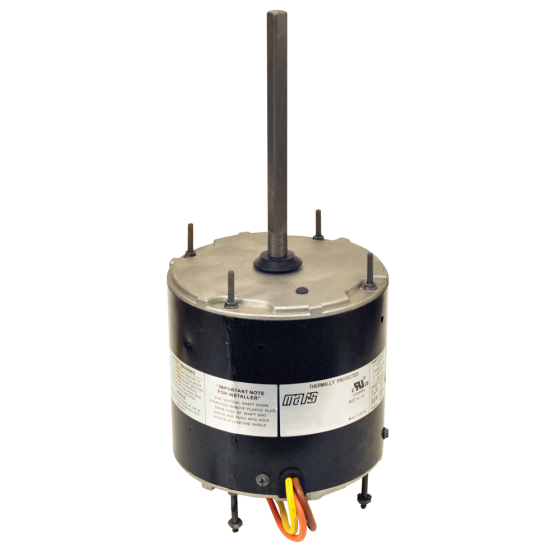

Mars® Multi- HP Condenser Fan Motor 1/6-1/3 HP, 1075 RPM, 208/230Vac, 2.8A, 7.5µF/370Vac, 1 Speed, 60 °C (PSC)
Item
10458
APPLICATIONS
MARS multi-horsepower condenser fan motors are ideal for truck stock.
FEATURES & BENEFITS
• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/3
• Voltage: 208-230
• Multi-Rated H.P.: 1/6-1/3
• Speeds: 1
• Hz: 60
• Rotation: REV
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 2.8
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 6.5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 60
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 7.5/370
• Rheem mounting holes w/screws installed
• Thru bolt or band mounting
• Water slinger on shaft
• Air conditioning or heat pump duty
DIRECT REPLACEMENTS
• Century/AO Smith - ORM5458
• US Motors/Emerson - 5458
• GE/Genteq - 3458
• Rheem/Protech - W51-MHCJA1-01
• ROTOM - R22402
| Specification | |
|---|---|
| Ambient Temperature | 60 °C | Motor HP | 1/6 - 1/3 | Motor Type | PSC | Number of Speeds | 1 | RPM | 1075 |
| Electrical | |
|---|---|
| Amps | 2.8 | FLA | 2.8 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 8 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 8.000000 |
