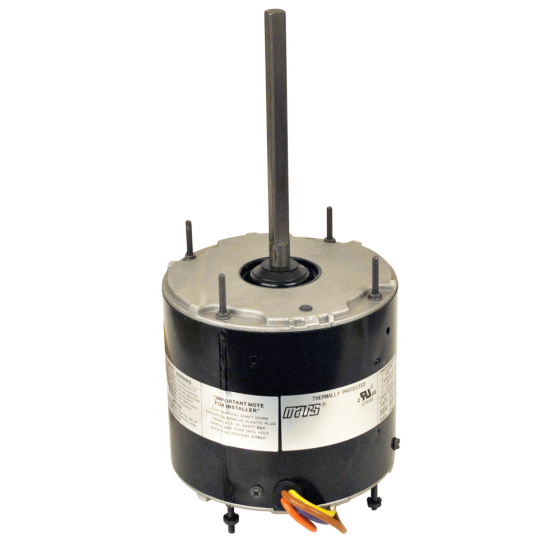

Mars® Condenser Fan Motor 1/3 HP, 825 RPM, 208/230Vac, 1.9A, 7.5µF/370Vac, 1 Speed, 60°C (PSC)

Item
10405
  • California Prop 65

APPLICATIONS

MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft down applications. End shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.

FEATURES & BENEFITS

• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/3
• Voltage: 208-230
• Speeds: 1
• Hz: 60
• Rotation: REV
• RPM Range: 825
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 1.9
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 6.5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 60
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 7.5/370
• Rheem mounting holes w/screws installed
• Water slinger on shaft
• Thru bolt or band mounting
• Capacitor requirement noted on motor label
• Double full flatted shaft
• Fan duty, continuous, air over
• Totally enclosed
• 36 inch leads

DIRECT REPLACEMENT FOR

• Century/A.O. Smith - FSE1038SF
• US Motors/Emerson - 1875
• Fasco - D796
• Genteq/Regal - 3405
• Marathon - X451
• Packard - 30825
• Nordyne/Partners Choice - 167
• Carrier/Totaline RCD - P257-8026
• Diversitech/Wagner - WG840205
• York/Source 2 - S1-FHM3205
• ROTOM - R22345

Specification
Motor HP 1/3
Motor Type PSC
Number of Speeds 1
RPM 825
Electrical
Amps 1.9
FLA 1.9
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 11.730000
Exterior Dimensions (W) (inches) 5.500000
Exterior Dimensions (H) (inches) 11.730000
Shipping Weight (lbs) 20.000000
