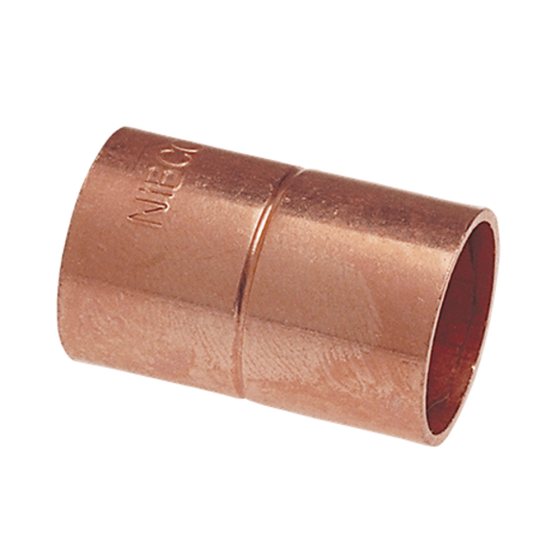

1" Roll-Stop Copper Coupling

Item
WB01047
  • California Prop 65

FEATURES

The NIBCO® lead-free* wrot copper solder pressure rolled stop coupling is used in residential and commercial systems such as potable water, air conditioning and refrigeration. Options include cleaned and bagged for oxygen service (medical gas).

  • • Lead-free
  • • Dezincification resistant
  • • ASTM B75 Alloy C12200
  • • NSF/ANSI/CAN-61 and 372
  • • Material and workmanship per ASME B16.22
  • • Material, workmanship and dimensions per MSS SP-104
  • • NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas)
  • • UL 207 Recognized to 700 PSI (select diameters)

  • Safety Standards
    California Prop 65 Yes
    Specification
    Copper Fitting Type Couplings
    Fitting Size 1"
    Weights and Dimensions
    Operating Weight (lbs) .2
    Exterior Dimensions (D) (inches) 1.000000
    Exterior Dimensions (W) (inches) 1.000000
    Exterior Dimensions (H) (inches) 1.000000
    Shipping Weight (lbs) 0.200000
