Mason Industries 30° Swing Single Spring & Double Deflection LDS Hanger, 3/8 in., 1.2 in. Deflection, 113lbs.

Item
30N-X-113
  • California Prop 65

APPLICATIONS

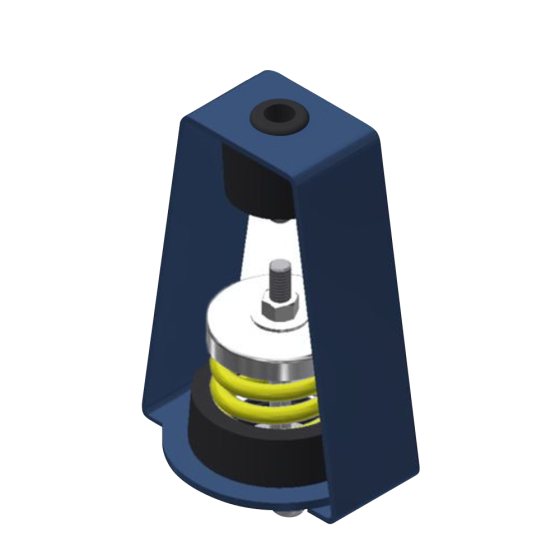

The 30N-X-113 30° Swing Spring & Double Deflection LDS Hanger consists of a rigid steel frame containing a minimum 1-1/4” (32mm) thick LDS rubber element at the top and a steel spring in a steel washer reinforced LDS rubber cup on the bottom. The LDS rubber element and the cup have molded bushings projecting through the steel box. In order to maintain stability, the boxes should not be articulated as clevis hangers, nor the LDS rubber element stacked on top of the spring. Spring and hanger lower hole diameters are large enough to permit the hanger rod to swing through a 30° arc from side to side before contacting the cup bushing and short circuiting the spring.

FEATURES & BENEFITS

• Size: X-113
• Rated Capacity (Ibs): 113
• Rated Defl (in): 1.2
• Spring Constant (Ibs/in): 113
• Maximum Rod Diameter (in): 3/8”
• Spring Color: Yellow

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1.6
Exterior Dimensions (D) (inches) 2.500000
Exterior Dimensions (W) (inches) 2.875000
Exterior Dimensions (H) (inches) 4.250000
Shipping Weight (lbs) 5.000000
