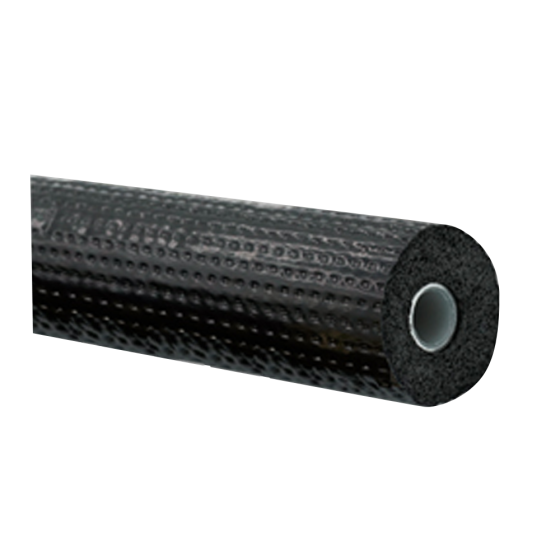

1/4"NPS x 1/2"IN x 300' Line Set
Item
P-5050
APPLICATIONS
Python™ is a PERT-AL-PERT line set and compression fitting system designed for both split system and mini-split system applications. It is for use in HVAC systems for industrial, commercial and residential applications.
FEATURES & BENEFITS
• For HVAC Residential & Commercial Applications
• Lightweight: Half the Weight of Copper Pipe
• ICC-ES PMG-1675 Listed
• Product Tested and Listed to ASTM F3506-21: Standard Specification
• Chemical, UV & Kink Resistant
• No Need for a Torch on Site
• Maximum Design Pressure: 700psi
• Maximum Design Temperature: 203˚F
• ID & Flow Rates: Same as Copper Pipe
• Approved Refrigerants: R410a, R32, R454b
• Pipe Marked Every Foot
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Fitting Size | 1/4" | Length | 300 ft. |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 40 | Exterior Dimensions (D) (inches) | 38.000000 | Exterior Dimensions (W) (inches) | 38.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 40.000000 |
