Compressor Installation Packet
Item
06NA660013
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.

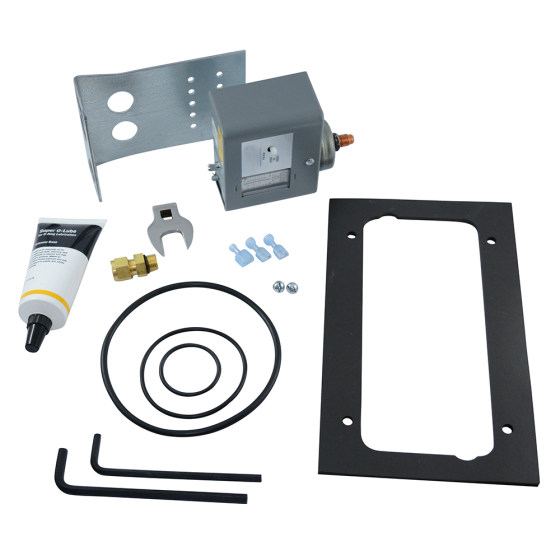

INCLUDES
• Terminal Box Gasket - 3TB0818 QTY 1
• Suction O-Ring - KK71EW354 QTY 1
• Discharge O-Ring - KK71EW234 QTY 1
• Economizer O-Ring - KK71EW223 QTY 1
• O-Ring Grease - 19XL680001 QTY 1
• Low Pressure Switch - HK01CB002 QTY 1
• 5mm Allen Head Wrench - KLE-LLM5 QTY 1
• ¼” Allen Head Wrench - KLE-SL16 QTY 1
• ¾” Crowsfoot Wrench - FC024A QTY 1
• Oil Line Fitting - DC80SA005 QTY 1
• Electrical Quick Connect (M) - HY69DS044 QTY 2
• Electrical Quick Connect (F) - HY69SD054 QTY 2
• Instruction Sheet - 99TA516068 QTY 1
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3.55 | Exterior Dimensions (D) (inches) | 9.400000 | Exterior Dimensions (W) (inches) | 14.200000 | Exterior Dimensions (H) (inches) | 4.700000 | Shipping Weight (lbs) | 4.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
