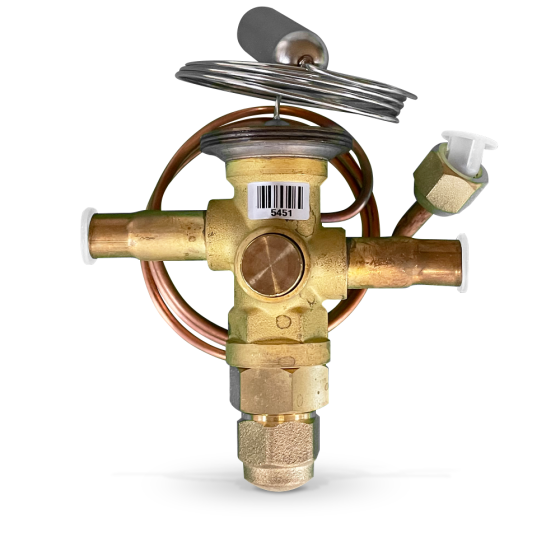

Danfoss Thermostatic Expansion Valve, R410A, 1.5 to 3 Ton

Item
067L5955
  • California Prop 65

FEATURES & BENEFITS

• Refrigerant: R410A
• Capacity: 1.5 to 3 Ton
• Adjustable: Yes
• Approval: C UL US
• Balanced Port
• Capillary tube length: 31.5"
• Check Valve
• Orifice Size: 3

INCLUDES

• Thermostatic Expansion Valve
• Aeroquip female 5/8" connector
• Bulb Strap
• Chatleff female 3/4" connector
• Flare 3/8" connector
• Insulation tape
• Installation instructions

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.8
Exterior Dimensions (D) (inches) 3.750000
Exterior Dimensions (W) (inches) 2.750000
Exterior Dimensions (H) (inches) 5.000000
Shipping Weight (lbs) 1.300000
Warranty
Country of Origin Denmark
