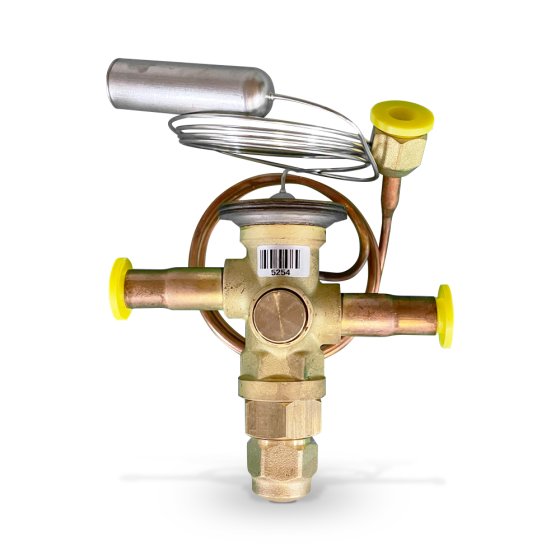

Danfoss Thermostatic Expansion Valve, R22, 5 to 6 Ton
Item
067L5859
FEATURES & BENEFITS
• Refrigerant: R22
• Capacity: 3.5 to 4 Ton
• Adjustable: Yes
• Approval: C UL US
• Balanced Port
• Capillary tube length: 31.5"
• Check Valve
• Orifice Size: 7
INCLUDES
• Thermostatic Expansion Valve
• Aeroquip female 5/8" connector
• Bulb Strap
• Chatleff female 3/4" connector
• Flare 3/8" connector
• Insulation tape
• Installation instructions
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.583 | Exterior Dimensions (D) (inches) | 5.354300 | Exterior Dimensions (W) (inches) | 4.960600 | Exterior Dimensions (H) (inches) | 3.700800 | Shipping Weight (lbs) | 1.250000 |
| Warranty | |
|---|---|
| Country of Origin | Denmark |
