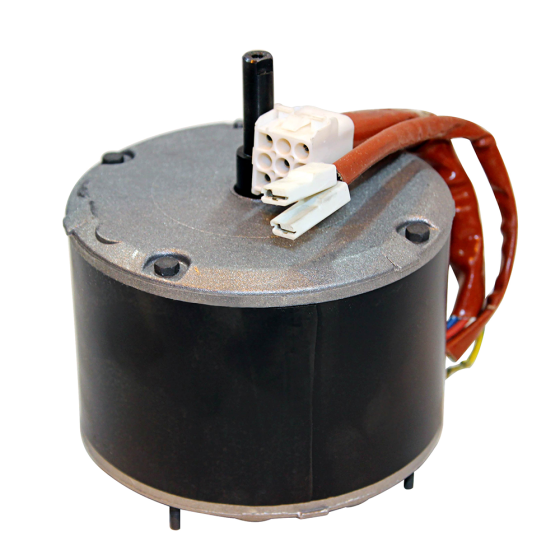

Direct Drive Blower Motor 1175RPM, 208/230Vac, 0.45A, 2µF/370Vac, (PSC)
Item
0352041X26
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• RPM: 1175
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 0.45
• Capacitor: 2µF/370Vac
• 1 Phase
• Hz: 60
• Totally Enclosed, Air Over (TEAO) Enclosure
• Insulation Class: A
| Specification | |
|---|---|
| Motor Type | PSC | Rotation | CCW LE | RPM | 1175 |
| Electrical | |
|---|---|
| Amps | 0.45 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 6.5 | Exterior Dimensions (D) (inches) | 4.700000 | Exterior Dimensions (W) (inches) | 5.100000 | Exterior Dimensions (H) (inches) | 6.500000 | Shipping Weight (lbs) | 6.750000 |
| Warranty | |
|---|---|
| Country of Origin | China |
