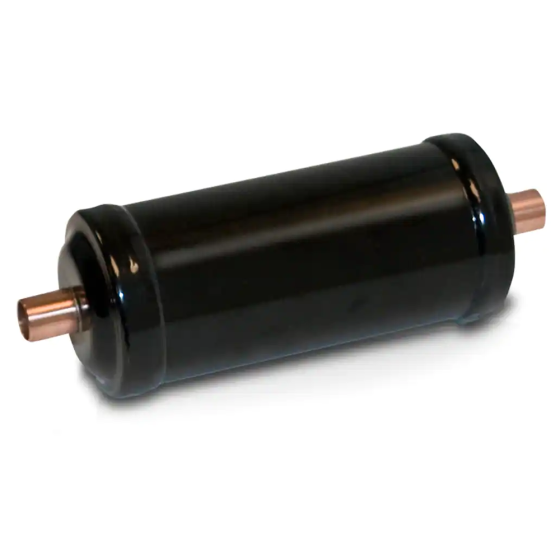

Bi-Flow Filter Drier 3/8" ODF 16cu. in.
Item
033084-00
PRODUCT DETAILS
The BF Series bi-flow filter-drier is designed specifically for heat pump or a reverse cycle application. External check valves are not required since they are incorporated within the filter-drier.
FEATURES & BENEFITS
• New product line-up with enhanced flow capacities deliver system protection solutions for today’s systems.• Model BF-163(S)-XF features R-32 excluding desiccant for R-410A and alternative internal construction for added filtration.
• Filter-drier operates in either flow direction with low pressure drop.
• Rugged metal check valve designed for maximum flow capacity.
• Desiccant core provides reliable and effective removal of moisture, solid contaminants, and acid.
• Core is cushioned in fiber gaskets to protect core and to ensure trouble-free performance.
• BF shells are epoxy powder coated to prevent corrosion even in the most adverse conditions.
• Shells rated for R-410A with 600 psig M.R.P. UL listed file SA3441.
• Desiccant Volume: 16cu. in
• Inlet Size: 3/8"
• Outlet Size: 3/8"
• Overall Length: 7.56
• Shell Diameter: 3"
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 7.9 | Exterior Dimensions (D) (inches) | 3.300000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 3.100000 | Shipping Weight (lbs) | 7.900000 |
Warranty | |
---|---|
Country of Origin | United States of America |
